Yamaha YS24 PCB SMT Machine Multi Heads Automatic Chip Mounter Machine 72000 CPH

Infinite Automation Co., Ltd. is offering second-hand and reconditioned SMT machines, one of our featured and available SMT machines is the Yamaha YS24 model Compact Super-high-speed Modular Mounter with two sets of narrow pitch 10 in-line multi heads. Yamaha YS24 model is equipped with a component recognition system adopted from the YS12 model. Yamaha YS24 High-Speed Mounter has a rigid dual-drive two-beam configuration and designed with a Dual Stage Conveyor system. This high-speed mounting machine is compatible with Super Large Printed Circuit Boards (PCBs). Yamaha YS24 SMT mounter nozzles are common with the "YS12" and "YS100" to ensure superior ease of maintenance.

Yamaha YS24

Features

Superior Mounting Capability of 72,000 CPH (0.05 sec./chip: Under ideal conditions as established by Yamaha Motor)

• Incorporates two sets of narrow pitch 10 in-line multi heads
• Equipped with a component recognition system adopted with YS12
• Fully rigid dual-drive two-beam configuration
• Newly developed "Dual Stage Conveyor" adopted

World's Highest Area Productivity

• Compact external dimensions of 1,254mm width and 1,687mm depth achieved. This has resulted in outstanding area productivity of 34,000 CPH per square meter, approximately double that of the "YS12".
• Compatible with Super Large Printed Circuit Boards (PCBs)
• In addition to being compatible with PCBs for large flat panel screens and LED lighting devices, large industrial PCBs, and other types of PCBs, it is also compatible with super large PCBs (L700 x W460mm).

Component Supply Device with Superior Ease of Operation and Work Efficiency

• The supply device adopts the single-lane type "SS Feeder". Thin, lightweight, and compact, this tape feeder is electric powered and controlled by a micro-computer to achieve superior working ease. A maximum of 120 units can be installed.
• The compact and lightweight feeder carriage system achieves high setup efficiency.
• A built-in tape cutter facilitates the easy disposal of empty waste tapes.

High Mounting Quality Guaranteed

• The "MACS", or Multiple Accuracy Compensation System, has been adopted. It compensates for various factors that change accuracy in a complex and multi-faceted manner, guaranteeing a constant mounting accuracy of ±0.05mm.
• Standard provision of a side view function, a component mounting orientation detection function, and a self nozzle diagnosis function ensures very high mounting quality and reliability.

Actual Operating Ratio increased by Ease of Maintenance

• Nozzles common with the "YS12" and "YS100" have been adopted to ensure superior ease of maintenance.
• Standard provision of a "Blow Station" enables self-cleaning of the nozzle shaft, reducing the amount of maintenance work.

Achieves Superior Ease of Operation

• Graphic display design with superior ease of operation has been adopted. An easy to view and easy to understand man-machine interface achieves very easy operation.
• Higher operating ratios and superior quality control are supported by software like "Y.FacT" and "IT Option".
• One of four display languages (Japanese, English, Chinese, or Korean) can be selected according to the location where the unit is installed.

Safety and Environmental Considerations

• The device is compatible with CE marking *4 to ensure safe device design, enabling it to be marked around the world.
• Compatible with an air supply source of 0.45MPa.

CE Marking: Name of the mark indicating device conforms with safety requirements for devices installed and used in the European region.

Specifications:

Images:

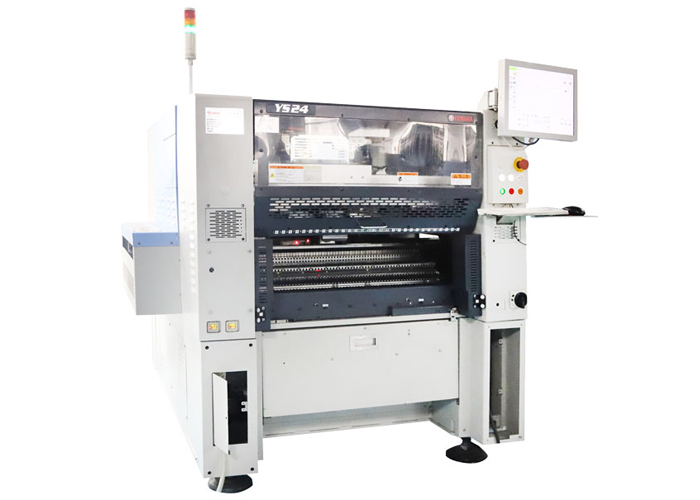

Yamaha YS24 PCB SMT Machine
